Creative Sound Blaster X5 Review

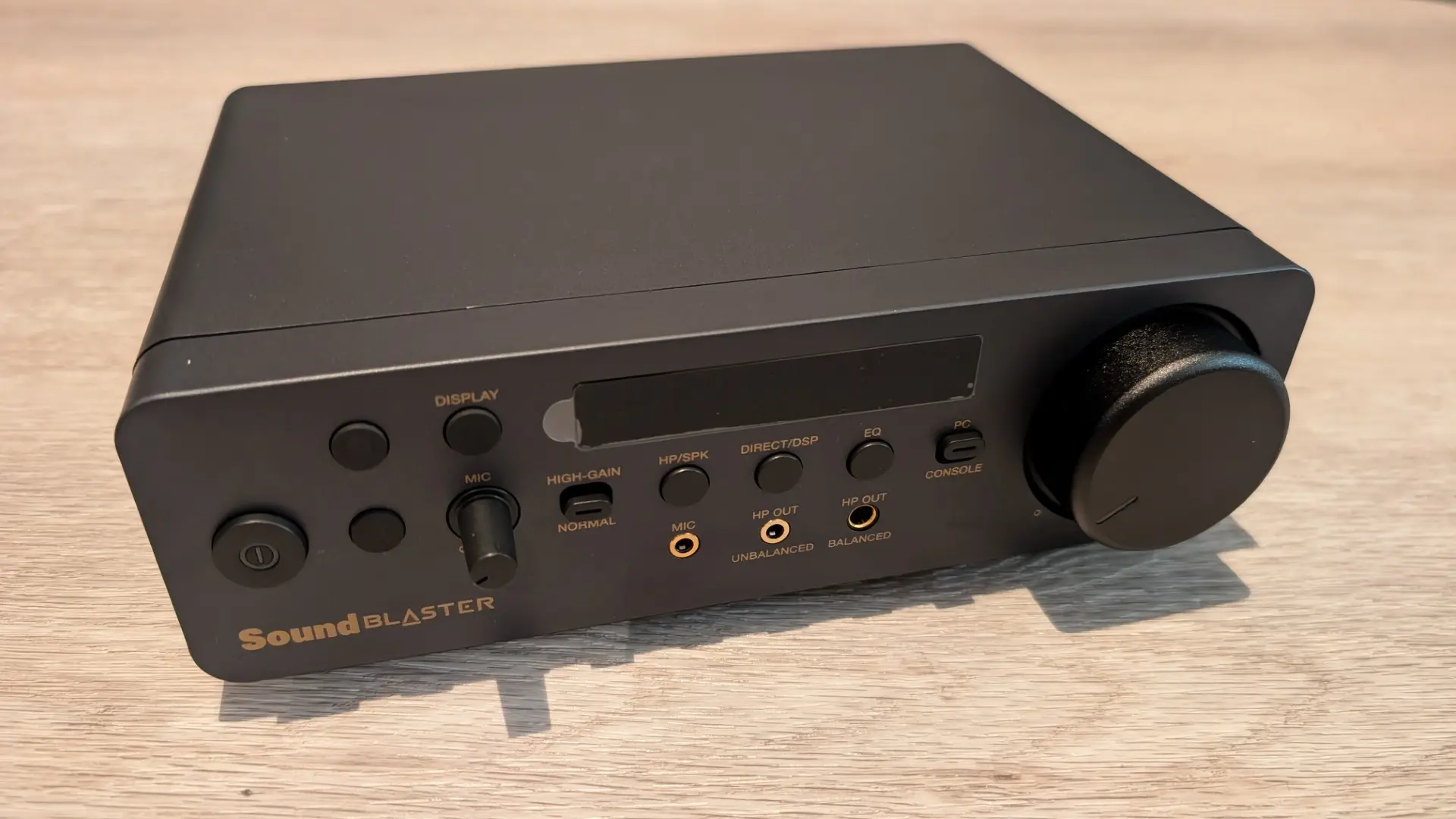

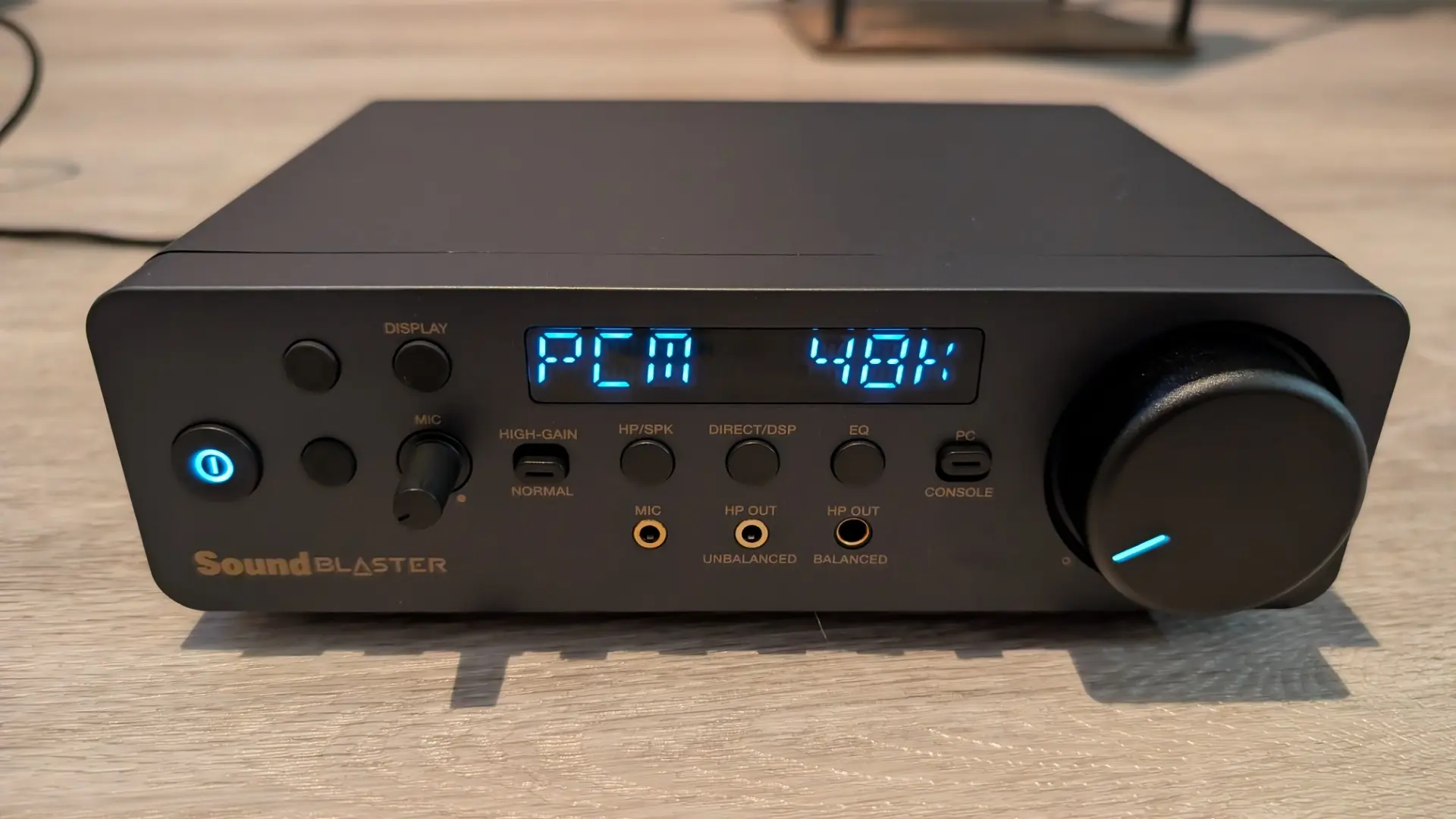

The Creative Sound Blaster X5 is a premium desktop DAC and headphone amplifier that combines audiophile‑level hardware with features designed for everyday use. The design is sleek and professional with a matte finish and a clear front panel layout. The large volume knob feels responsive, and the LED indicators make it easy to see which inputs and modes are active. Further, the unit is compact enough to sit neatly on a desk while still looking substantial and well built (even though its mostly plastic) that measures at 216mm x 72mm x 170mm with a weight of just 879 grams with a well of connectivity options that include the following.

• Bluetooth 5.0
• 1 x TOSLINK Optical-out
• 1 x TOSLINK Optical-in
• 1 x RCA Line-out
• 1 x RCA Line-in
• 1 x USB-C port of PC/Mac/PS4/PS5
• 1 x USB-A Host
• 1 x 3.5 mm Headphones / Headset-out
• 1 x 3.5 mm Mic-in
• 1 x 4.4 mm 5-pole Balanced Headphones

System Requirements

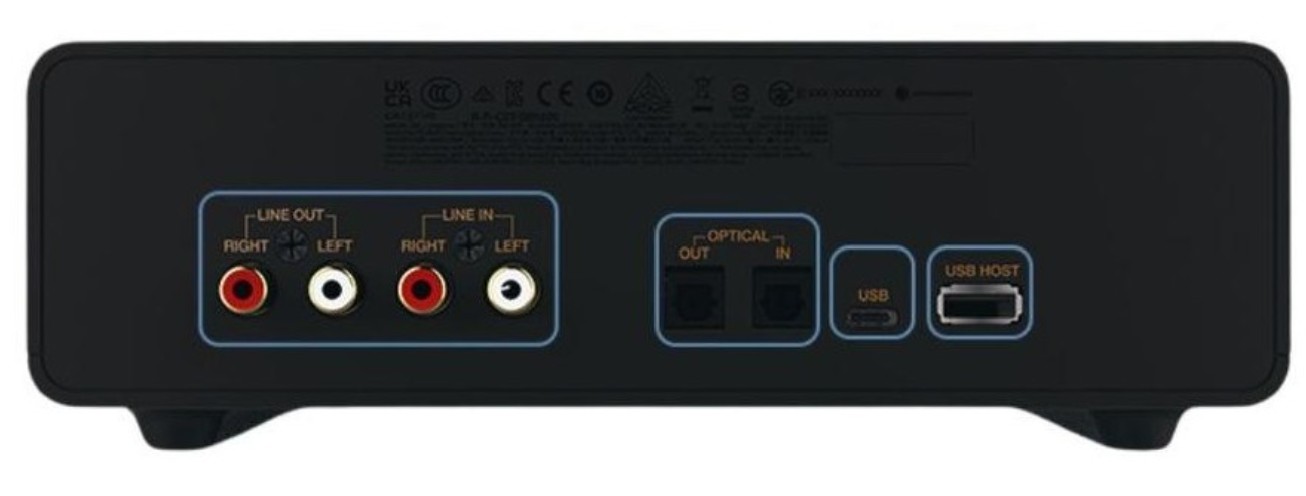

Setup is simple. You connect the X5 via USB to a PC, Mac, or console and it is ready to go without complicated installation. It also supports optical and line‑in connections, which gives flexibility for different devices. The rear panel includes RCA line‑in and line‑out, TOSLINK optical in and out, USB‑C for power and data, a USB‑A host port for USB microphones, USB headsets, USB speakers, and Creative’s BT‑W4 or BT‑W3 transmitters, plus both 3.5 mm and 4.4 mm headphone outputs. The X5 also includes a built‑in Bluetooth receiver (*), allowing you to stream audio directly from mobile devices. Once connected, you can control playback directly from the unit or use the Creative app for more advanced adjustments.

(*) Bluetooth only supports SBC

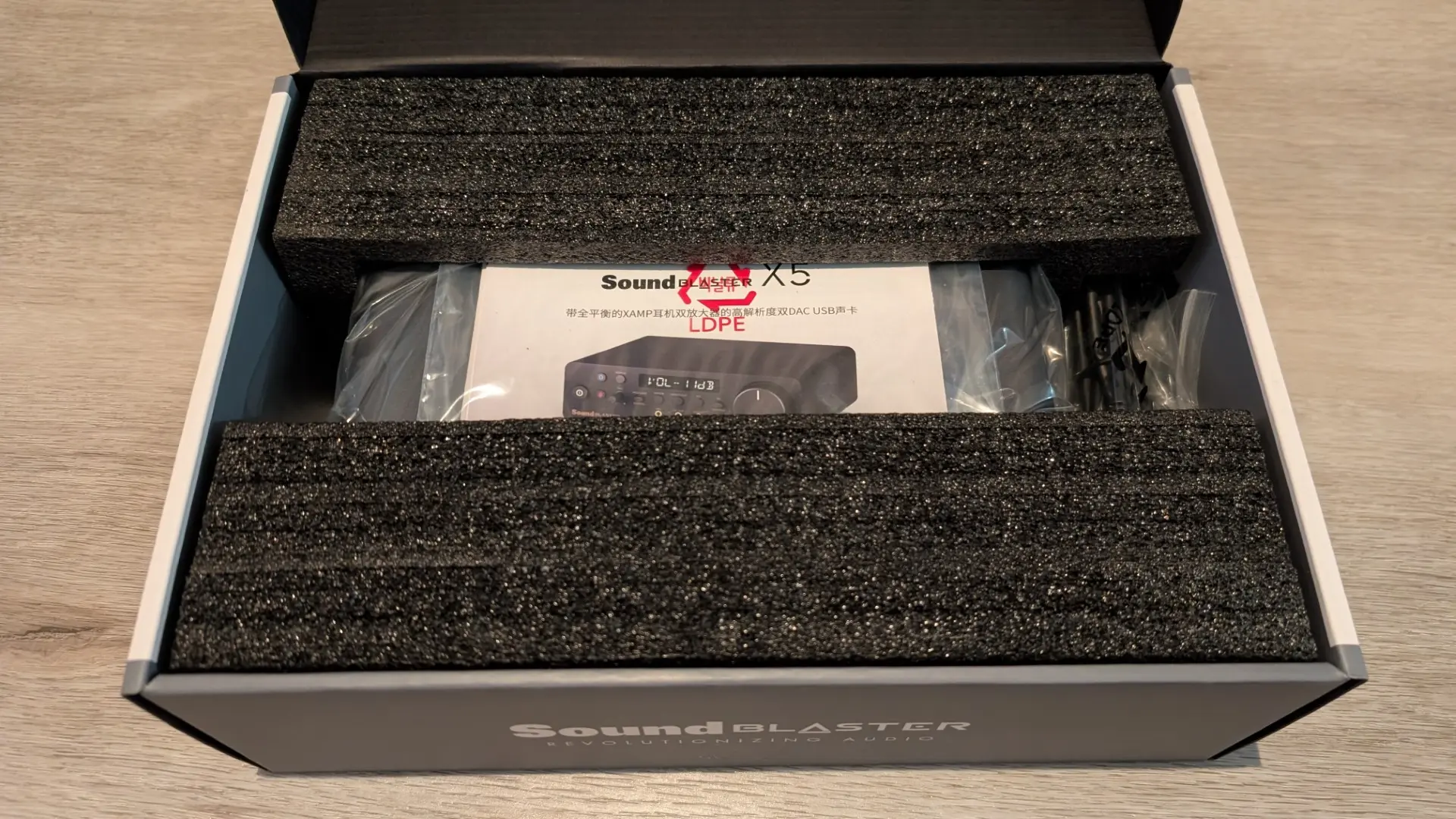

Package Contents

• 1 x Sound Blaster X5
• 1 x USB-C to USB-A Cable (1.5m / 4.9 ft)
• 1 x Optical Cable (1.5m / 4.9 ft)
• 1 x 3.5 mm to RCA Stereo Cable (2m / 6.6 ft)
• 1 x Quick Start Guide
• 1 x Warranty and Compliance Leaflet

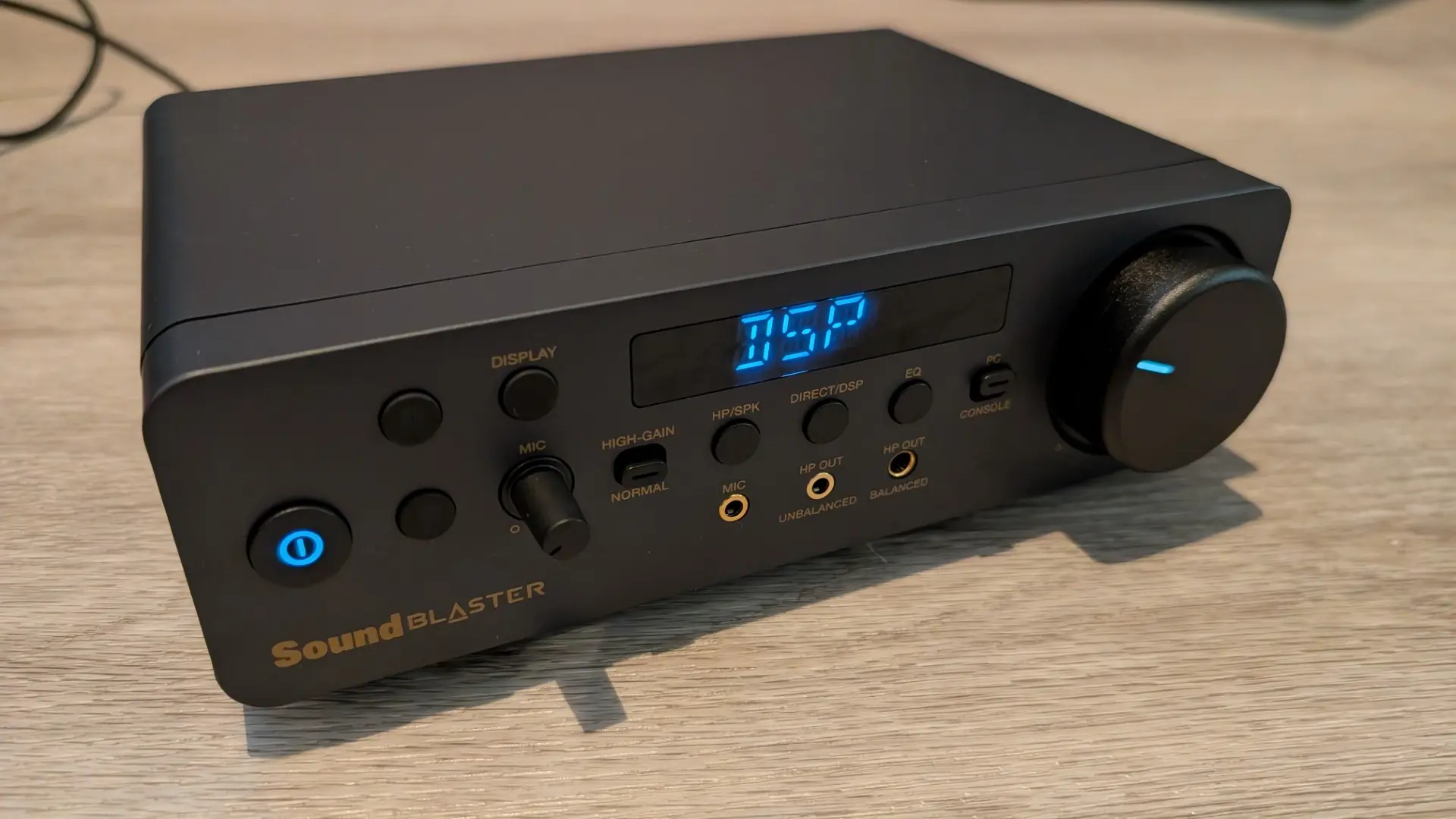

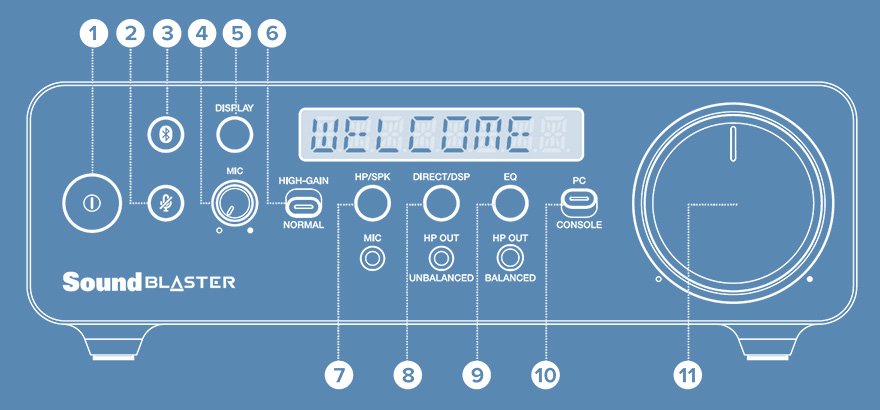

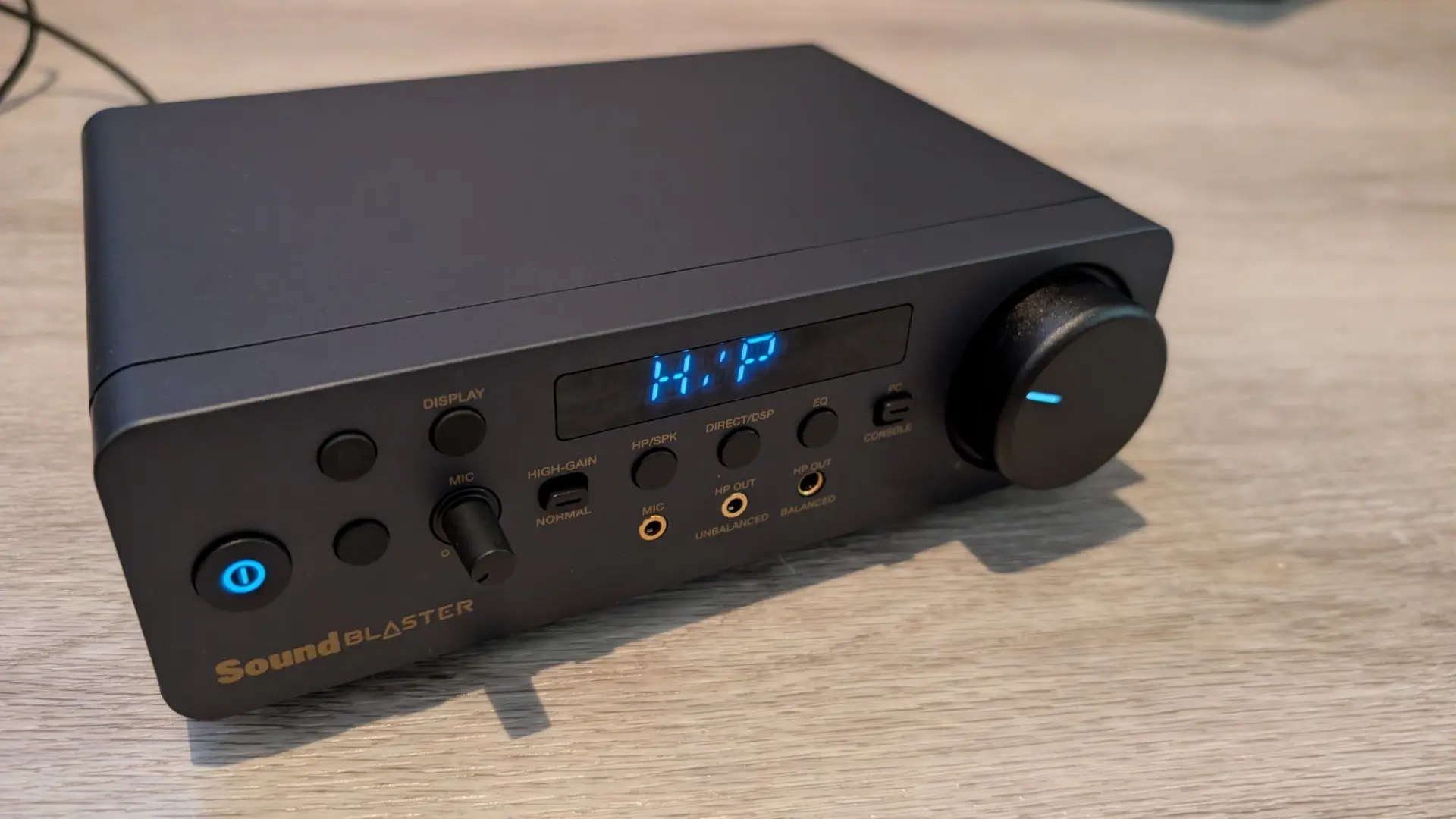

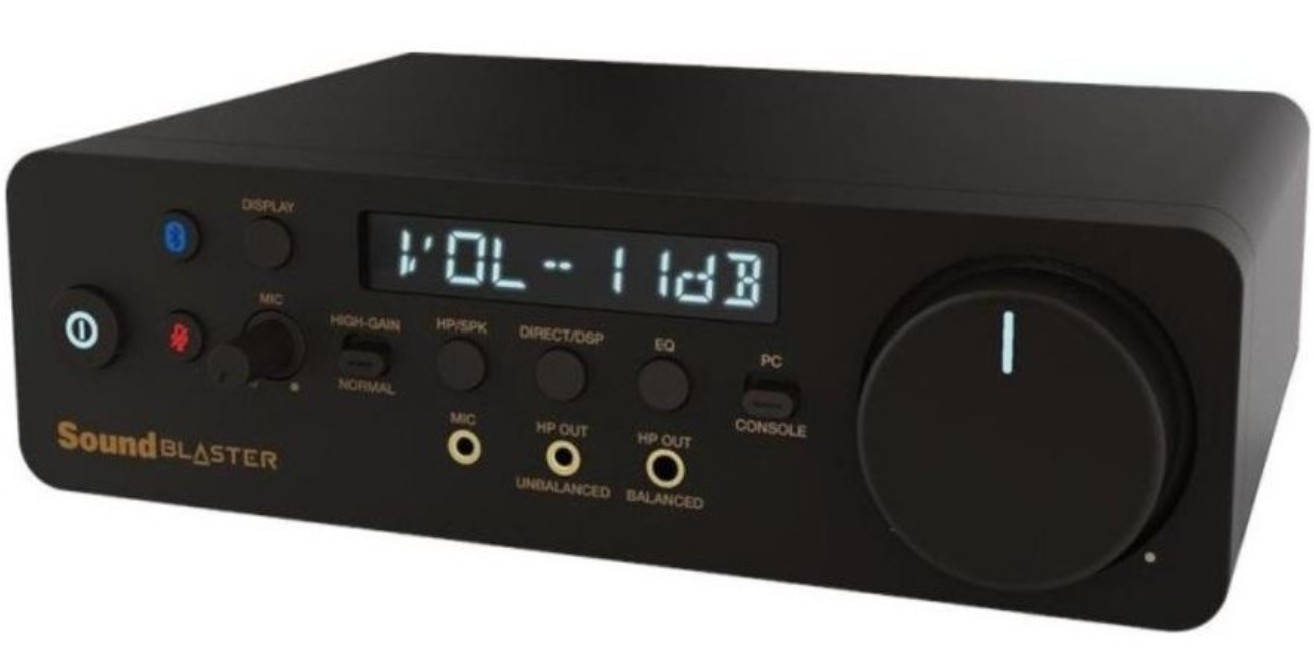

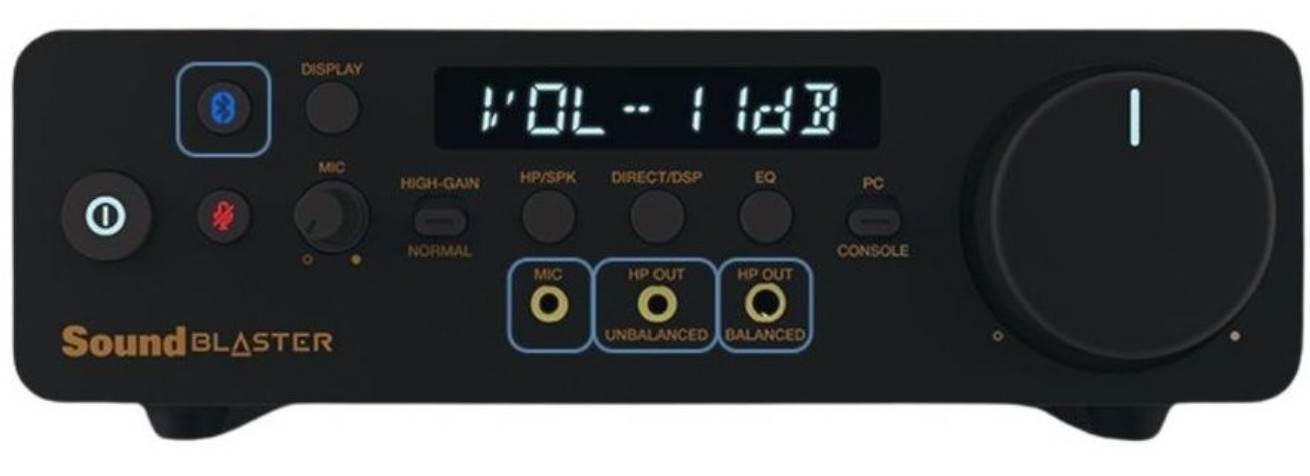

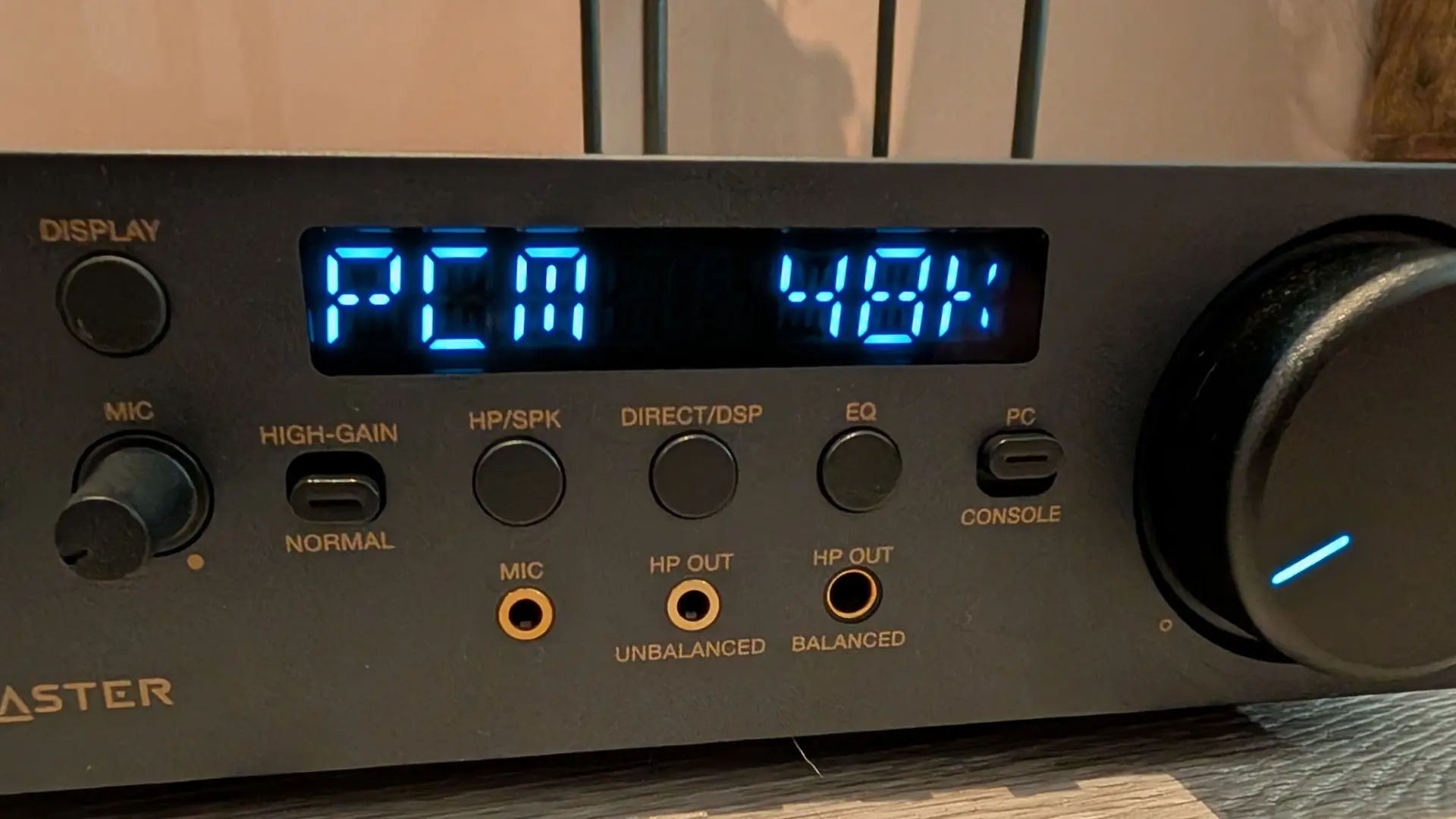

The front panel controls are extensive and easy to access. These include power, microphone mute, Bluetooth pairing, a dedicated microphone gain knob, a display button, a headphone gain switch for low or high impedance headphones, a headphone/speaker toggle, a Direct/DSP mode switch, an EQ preset button, a PC/Console mode switch, and the main volume knob. This level of physical control makes the X5 feel like a true desktop audio hub rather than a simple DAC.

1. Power Press x1 to power the device ON / OFF
2. Microphone Mute Press x1 to mute/unmute microphone
3. Bluetooth
4. Microphone Gain Knob
5. Display Button Press x1 to cycle through different display status
6. Headphone Gain Switch

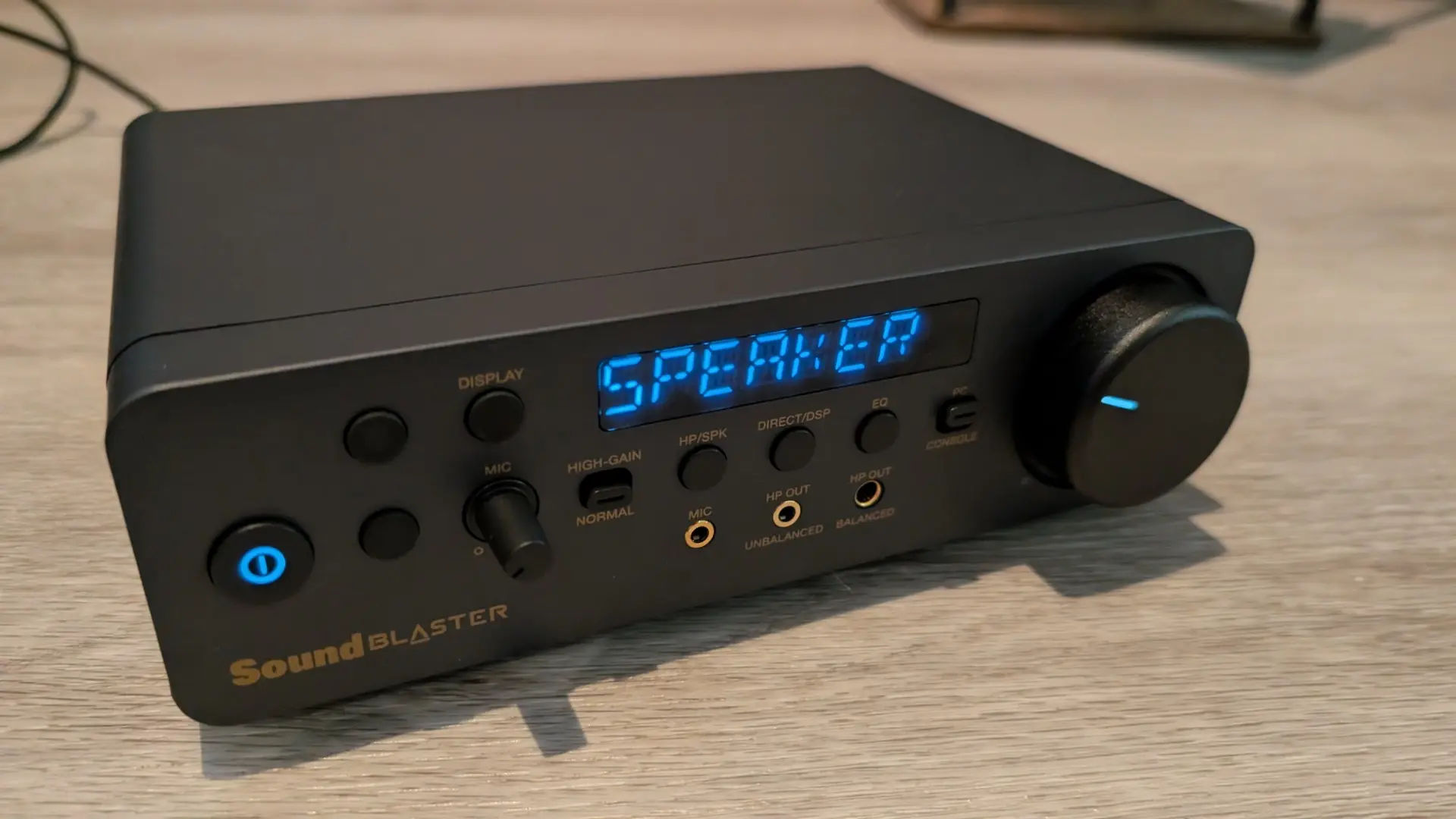

7. Headphone / Speaker Switch Press x1 to toggle between Headphones / Speakers output
8. Direct / DSP Switch Press x1 to toggle between DSP Mode and Direct Mode
9. EQ Press x1 to cycle through three saved EQ presets
10. PC / Console Switch

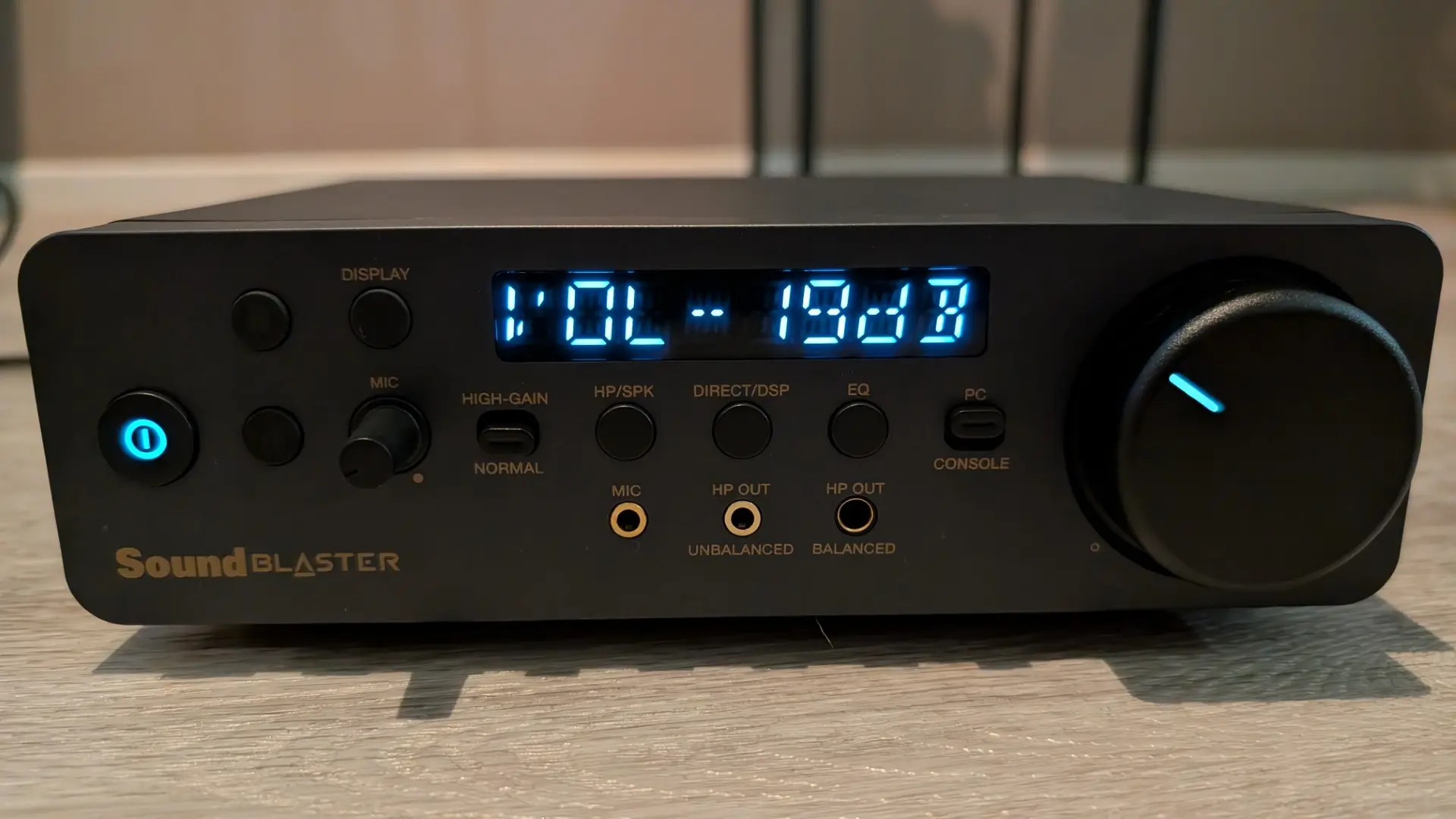

11. Volume Knob

The Creative app adds a deeper layer of customization. It lets you fine‑tune EQ settings, switch between audio profiles, and manage its overall features. You can also adjust microphone settings, balance inputs, and update firmware through the app, making it a central hub for tailoring the X5 to your needs. The X5 also supports ASIO 2.2 playback and recording for low‑latency workflows, and it can handle high‑resolution formats including DoP128 and DSD256.

Performance is where the X5 stands out, as it supports up to 32‑bit 384 kHz playback with a dynamic range of 130 dB and an ultra‑low distortion rating of 0.00018 percent. In practice, this means audio is delivered with exceptional clarity, detail, and precision. Additionally, the dual Cirrus Logic DACs and balanced headphone output provide clean, powerful sound whether you are listening to music, gaming, or watching movies. The internal dual‑MCU architecture also improves responsiveness and reduces system bottlenecks.

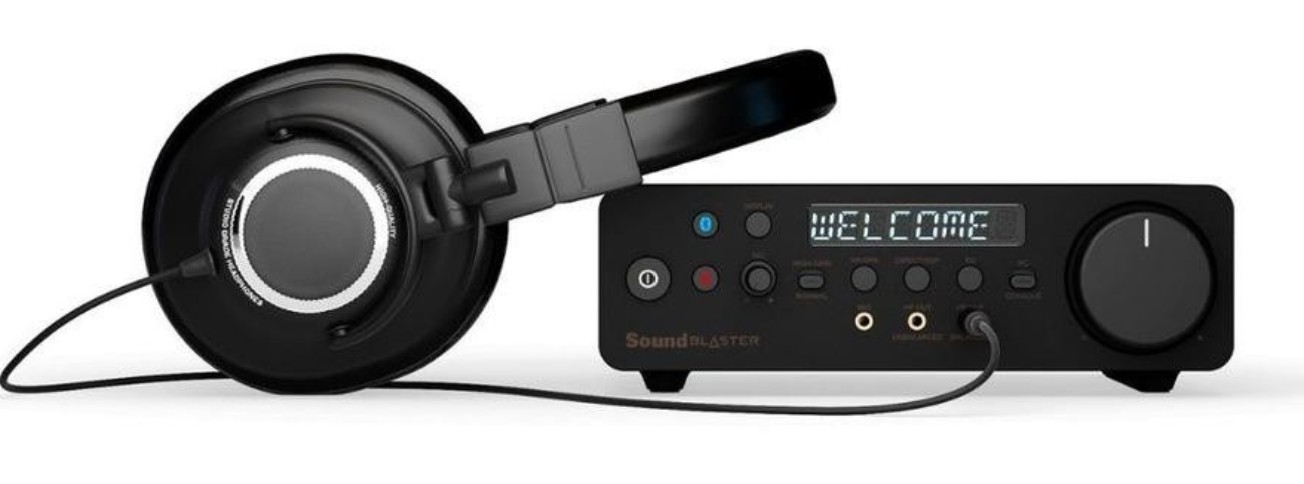

The headphone amplifier can drive high‑impedance headphones up to 600 ohms, making it suitable for studio‑grade gear as well as everyday models. For gamers, the combination of low‑latency surround sound processing and microphone enhancements makes it versatile for both competitive play and immersive experiences.

In Australia, the Creative Sound Blaster X5 retails from $389 AUD (December 2025) from au.creative.com, although other official retailers may have different prices. With that said, it sits firmly in the premium category of desktop DACs and headphone amps, but the combination of design, performance, and flexibility makes it a strong value for anyone looking to elevate their audio setup.

Final Thoughts

Overall, the Creative X5 blends sleek design, easy setup, app‑based customization, and audiophile‑grade performance. It is a powerful audio interface that feels equally at home in a gaming setup, a creative workspace, or a living room.
